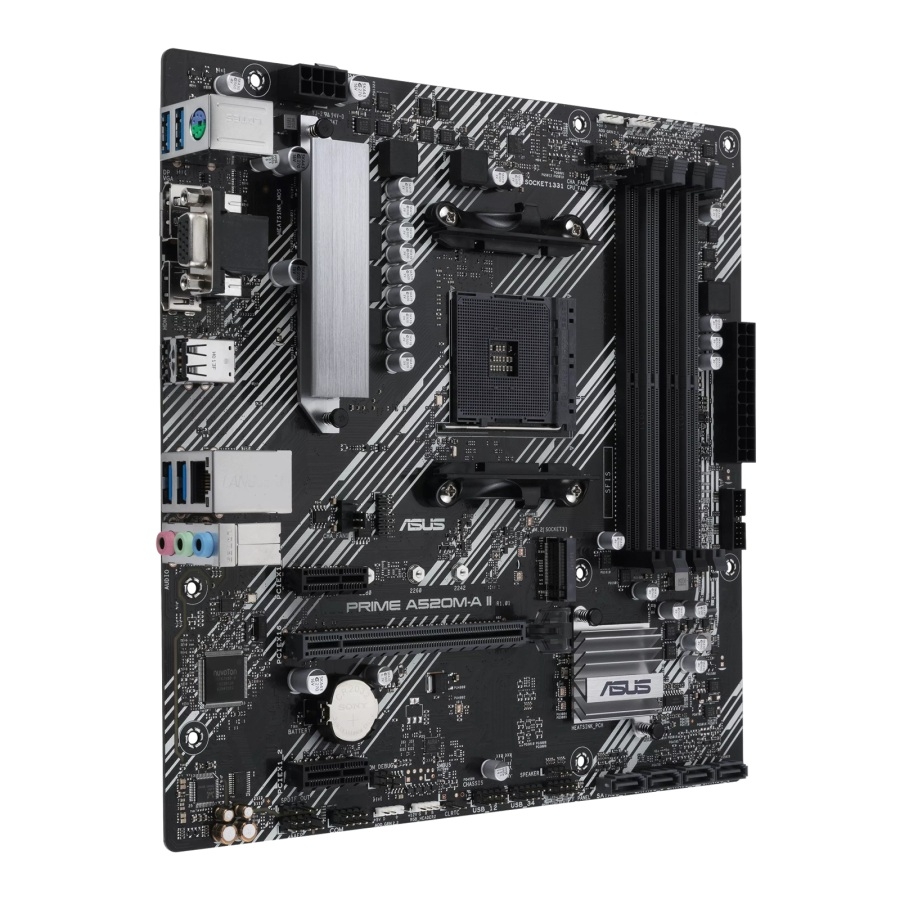

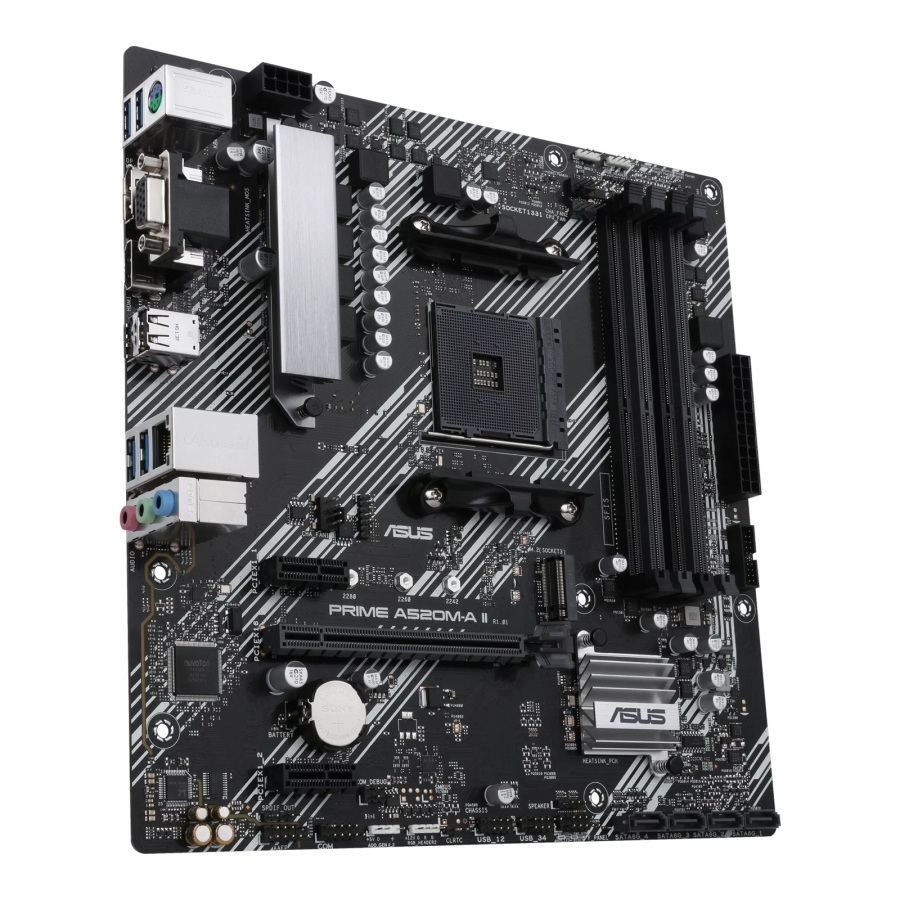

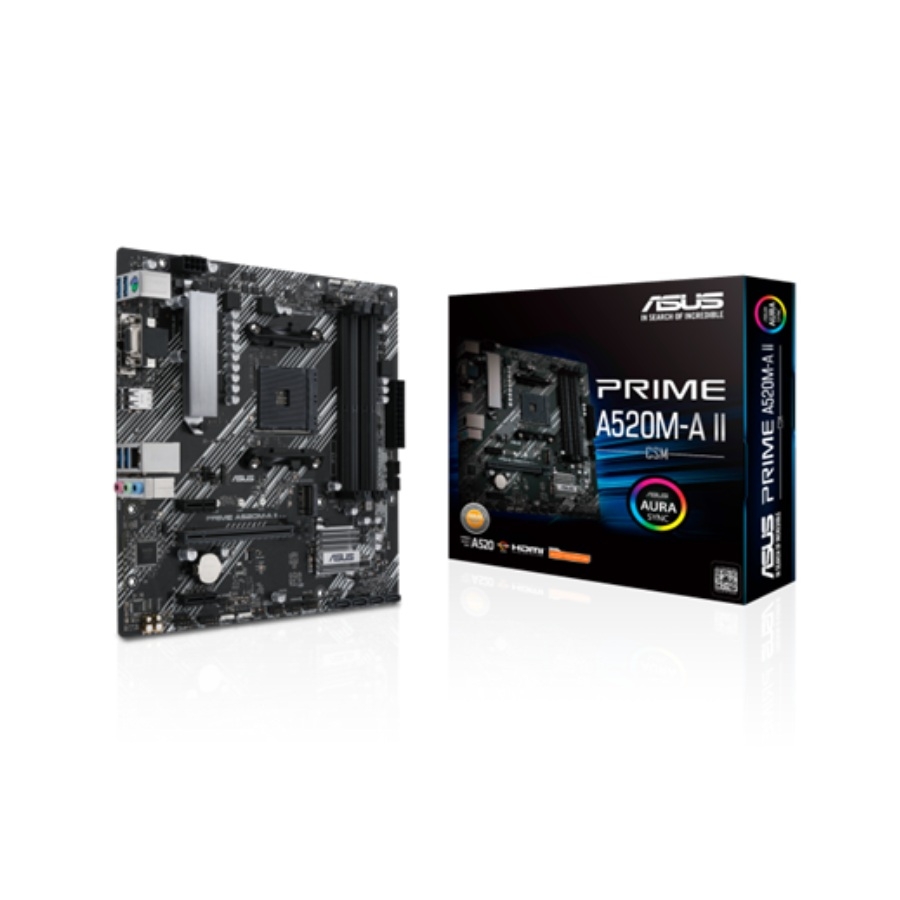

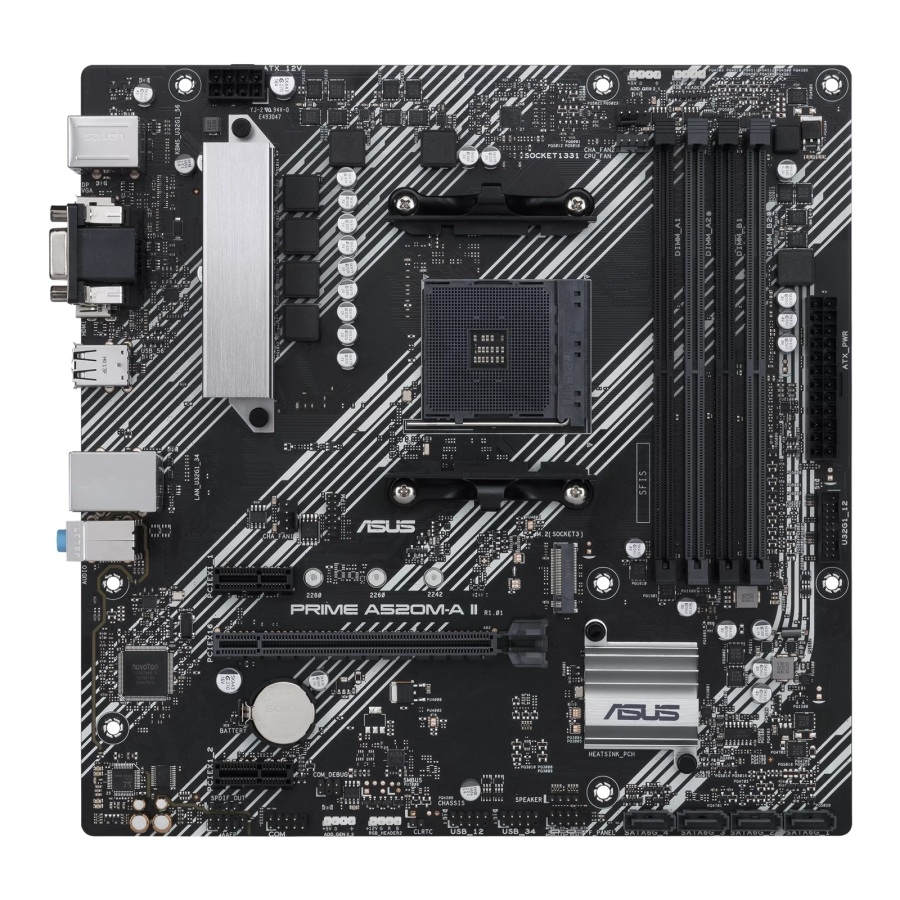

MB ASUS A520 AMD S-AM4 5A GEN/4X DDR4 2800/DP/HDMI/D-SUB/M.2/4X USB3.2/MICRO ATX/GAMA BASICA/CSM

Descripción

CPU
AMD RYZEN™ 5000 SERIES/ 5000 G-SERIES/ 4000 G-SERIES/ 3000 SERIES DESKTOP PROCESSORS
* REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST

CHIPSET
A520

MEMORIA
CANALES DE MEMORIA:4 X DIMM, MAX. 128GB, DDR4
4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHZ, UN-BUFFERED MEMORY*
DUAL CHANNEL MEMORY ARCHITECTURE
*ECC MEMORY (ECC MODE) SUPPORT VARIES BY CPU.
* REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS), AND MEMORY FREQUENCY SUPPORT DEPENDS ON THE CPU TYPES.

GRáFICOS
1 X DISPLAYPORT 1.2
1 X D-SUB
1 X HDMI® PORT***
* GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES

RANURAS DE EXPANSIóN
AMD RYZEN™ 5000 SERIES/ 5000 G-SERIES/ 4000 G-SERIES/ 3000 SERIES DESKTOP PROCESSORS
1 X PCIE 3.0 X16 SLOT (SUPPORTS X16 MODE)
AMD A520 CHIPSET
2 X PCIE 3.0 X1 SLOTS

ALMACENAMIENTO
SUPPORTS 1 X M.2 SLOT AND 4 X SATA 6GB/S PORTS
AMD RYZEN™ 5000 SERIES/ 5000 G-SERIES/ 4000 G-SERIES/ 3000 SERIES DESKTOP PROCESSORS
M.2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 3.0 X4 AND SATA MODES)
AMD A520 CHIPSET
4 X SATA 6GB/S PORTS
SUPPORT RAID 0, 1, 10

USB
USB TRASERO:TOTAL 6 PORTS
4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A)
2 X USB 2.0 PORTS (2 X TYPE-A)
USB FRONTAL:FRONT USB PORT ( TOTAL 6 )
1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS

AUDIO
ALC887/897
REALTEK ALC887/897 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC*
– SUPPORTS : JACK DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING
– SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK
AUDIO FEATURES
– AUDIO SHIELDING
– PREMIUM JAPANESE AUDIO CAPACITORS
– DEDICATED AUDIO PCB LAYERS
*A CHASSIS WITH AN HD AUDIO MODULE IN THE FRONT PANEL IS REQUIRED TO SUPPORT 7.1 SURROUND SOUND AUDIO OUTPUT.

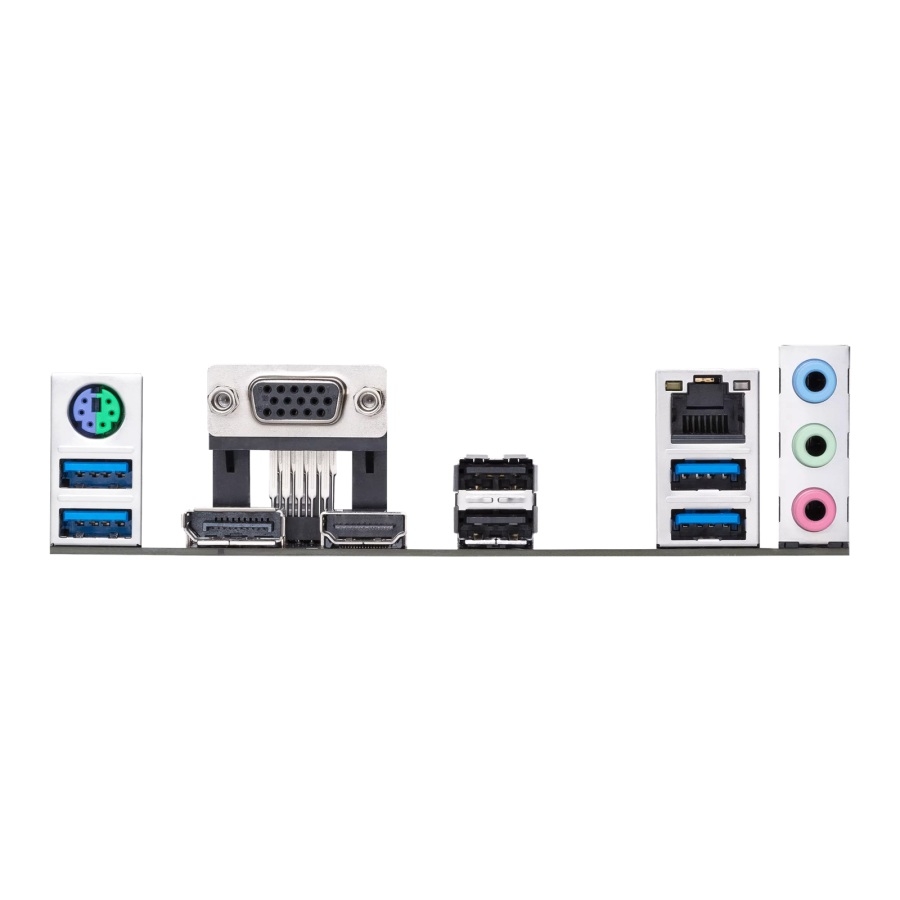

PUERTOS E/S TRASEROS
4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A)
2 X USB 2.0 PORTS (2 X TYPE-A)
1 X DISPLAYPORT
1 X HDMITM PORT
1 X D-SUB
1 X REALTEK 1GB ETHERNET PORT
3 X AUDIO JACKS
1 X PS/2 KEYBOARD/MOUSE COMBO PORT

PUERTOS INTERNOS
FAN AND COOLING RELATED
1 X 4-PIN CPU FAN HEADER
2 X 4-PIN CHASSIS FAN HEADERS
POWER RELATED
1 X 24-PIN MAIN POWER CONNECTOR
1 X 8-PIN +12V POWER CONNECTOR
STORAGE RELATED
1 X M.2 SLOT (KEY M)
4 X SATA 6GB/S PORTS
USB
1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS
2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS
MISCELLANEOUS
2 X AURA ADDRESSABLE GEN 2 HEADER
2 X AURA RGB HEADERS
1 X CLEAR CMOS HEADER
1 X COM PORT HEADER
1 X FRONT PANEL AUDIO HEADER (AAFP)
1 X S/PDIF OUT HEADER
1 X SPEAKER HEADER
1 X SPI TPM HEADER (14-1PIN)
1 X 10-1 PIN SYSTEM PANEL HEADER
FUNCIONES ESPECIALES DE ASUS
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGUARD
– OVERVOLTAGE PROTECTION
– SAFESLOT CORE
– STAINLESS-STEEL BACK I/O
ASUS Q-DESIGN
– ASUS Q-DIMM
– ASUS Q-SLOT
ASUS THERMAL SOLUTION
– VRM HEATSINK DESIGN
AURA SYNC
– AURA RGB HEADERS
– ADDRESSABLE GEN 2 RGB HEADERS

SOFTWARE
ASUS EXCLUSIVE SOFTWARE
ARMOURY CRATE
– AURA CREATOR
– AURA SYNC
AI SUITE 3
– PERFORMANCE AND POWER SAVING UTILITY
TURBOV EVO
EPU
DIGI+ VRM
FAN XPERT 2+
– EZ UPDATE
ASUS CPU-Z
AI CHARGER
DAEMON TOOLS
NORTON ANTI-VIRUS SOFTWARE (FREE TRIAL VERSION)
WINRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CRASHFREE BIOS 3
– ASUS EZ FLASH 3
– ASUS UEFI BIOS EZ MODE

BIOS
128 MB FLASH ROM, UEFI AMI BIOS
MANEJABILIDAD
WOL BY PME, PXE

ACCESORIOS
CABLES
2 X SATA 6GB/S CABLES
MISCELLANEOUS
1 X I/O SHIELD
1 X M.2 SSD SCREW PACKAGE
INSTALLATION MEDIA
1 X SUPPORT DVD
DOCUMENTATION
1 X USER MANUAL

SISTEMA OPERATIVO
WINDOWS® 10 64-BIT
WINDOWS® 7 64-BIT *1

FACTOR DE FORMA
MATX
9.6 INCH X 9.6 INCH ( 24.4 CM X 24.4 CM )
