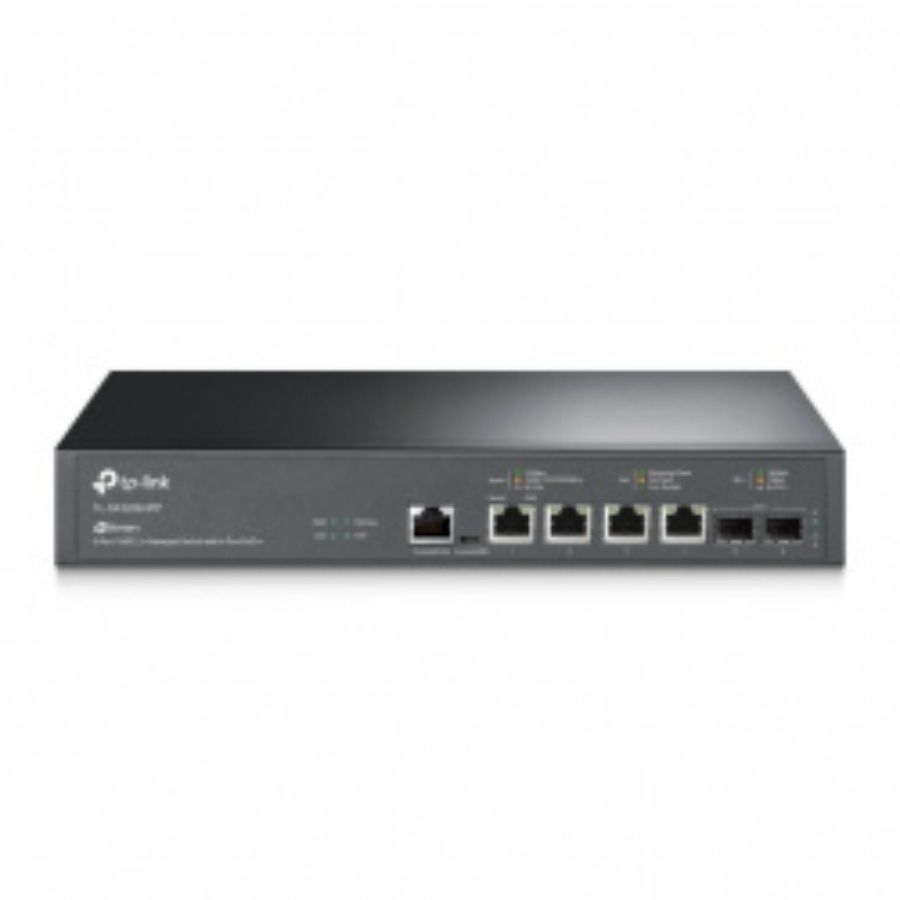

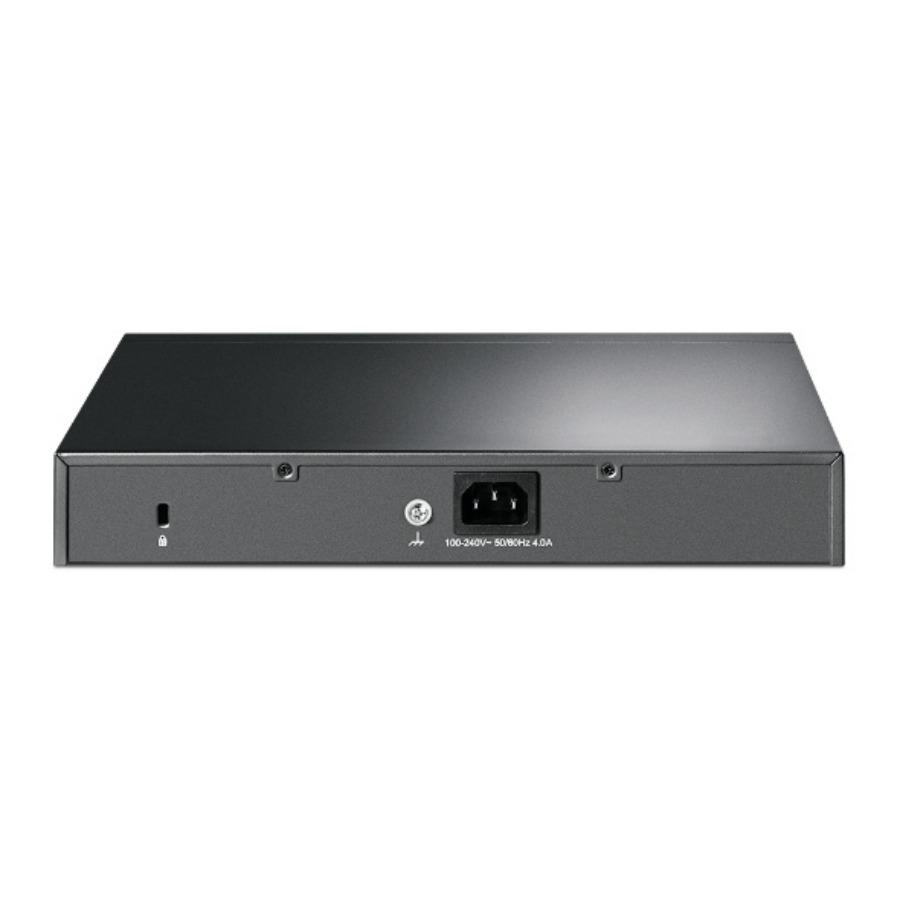

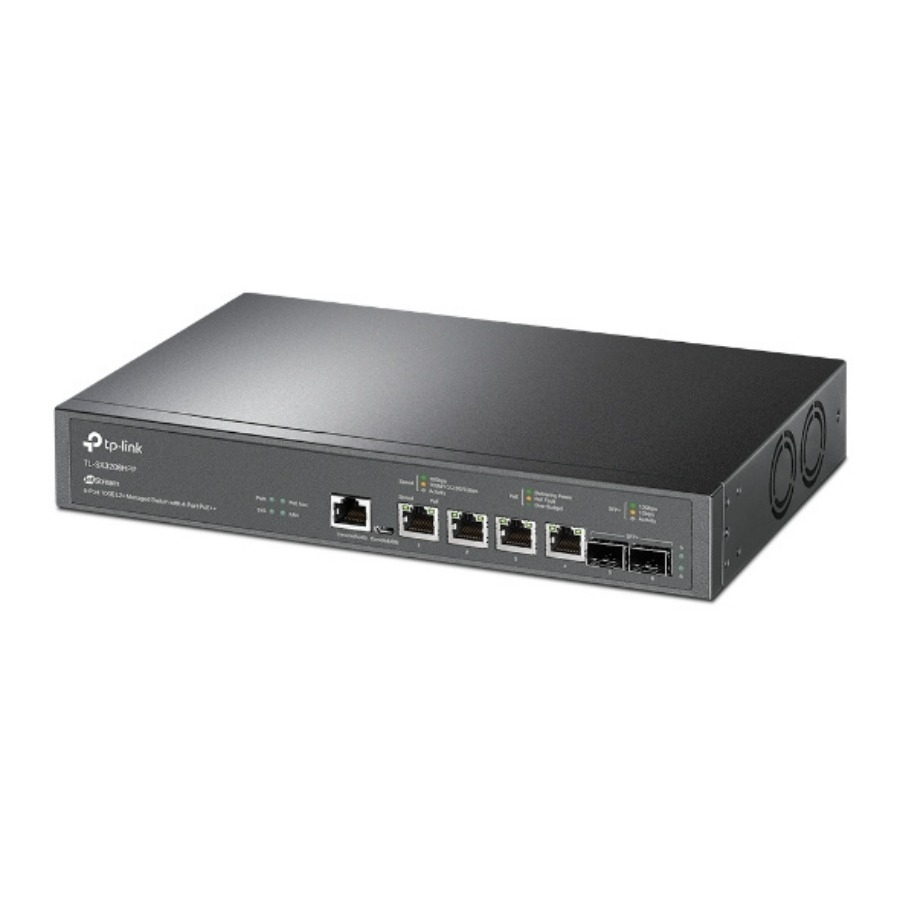

SWITCH TP-LINK TL-SX3206HPP 6 PUERTOS ADMINISTRABLE 10GE L2 4 PTOS POE

Descripción

CARACTERÍSTICAS DE HARDWARE
INTERFACE • 4× 100/1000/2500/5000/10000 MBPS RJ45 PORTS
• 2× 10G SFP+ SLOTS
• 1× RJ45 CONSOLE PORT
• 1× MICRO-USB CONSOLE PORT
CANTIDAD DE VENTILADORES 2
FUENTE DE ALIMENTACIÓN 100-240 V AC~50/60 HZ
PUERTOS POE (RJ45) • STANDARD: 802.3BT/AT/AF COMPLIANT
• POE+ PORTS: 4 PORTS, UP TO 60 W PER PORT
• POWER BUDGET: 200 W
DIMENSIONES (W X D X H) 11.6 × 7.1 × 1.7 IN (294× 180 × 44 MM)
MONTAJE • RACK MOUNTABLE
• DESKTOP
CONSUMO MÁXIMO DE ENERGÍA • 27.29 W (110V/60HZ) (NO PD CONNECTED)
• 244.90 W (110V/60HZ) (WITH 200 W PD CONNECTED)
DISIPACIÓN MÁXIMA DE CALOR • 93.12 BTU/H (110 V/60 HZ) (NO PD CONNECTED)
• 835.67 BTU/H (110 V/60 HZ) (WITH 200 W PD CONNECTED)
RENDIMIENTO
CAPACIDAD DE SWITCHEO 120 GBPS
TASA DE REENVÍO DE PAQUETES 89.28 MPPS
TABLA DE MAC ADDRESS 32 K
JUMBO FRAME 9 KB
CARACTERÍSTICAS DE SOFTWARE
CALIDAD DE SERVICIO • 8 PRIORITY QUEUES
• 802.1P COS/DSCP PRIORITY
• QUEUE SCHEDULING
– SP (STRICT PRIORITY)
– WRR (WEIGHTED ROUND ROBIN)
– SP+WRR
• BANDWIDTH CONTROL
– PORT/FLOW BASED RATING LIMITING
• SMOOTHER PERFORMANCE
• ACTION FOR FLOWS
– MIRROR (TO SUPPORTED INTERFACE)
– REDIRECT (TO SUPPORTED INTERFACE)
– RATE LIMIT
– QOS REMARK
CARACTERÍSTICAS DE L2 Y L2 + • LINK AGGREGATION
– STATIC LINK AGGREGATION
– 802.3AD LACP
– UP TO 8 AGGREGATION GROUPS, CONTAINING 8 PORTS PER GROUP
• SPANNING TREE PROTOCOL
– 802.1D STP
– 802.1W RSTP
– 802.1S MSTP
– STP SECURITY: TC PROTECT, BPDU FILTER, ROOT PROTECT
• LOOPBACK DETECTION
– PORT BASED
– VLAN BASED
• FLOW CONTROL
– 802.3X FLOW CONTROL
– HOL BLOCKING PREVENTION
• MIRRORING
– PORT MIRRORING
– CPU MIRRORING
– ONE-TO-ONE
– MANY-TO-ONE
– TX/RX/BOTH
L2 MULTICAST • IGMP SNOOPING
– IGMP V1/V2/V3 SNOOPING
– FAST LEAVE
– IGMP SNOOPING QUERIER
– IGMP AUTHENTICATION
• IGMP AUTHENTICATION
• MLD SNOOPING
– MLD V1/V2 SNOOPING
– FAST LEAVE
– MLD SNOOPING QUERIER
– STATIC GROUP CONFIG
– LIMITED IP MULTICAST
• MVR
• MULTICAST FILTERING: 256 PROFILES AND 16 ENTRIES PER PROFILE
VLAN • VLAN GROUP
– MAX 4K VLAN GROUPS
• 802.1Q TAGGED VLAN
• MAC VLAN: 10 ENTRIES
• PROTOCOL VLAN: PROTOCOL TEMPLATE 16, PROTOCOL VLAN 16
• PRIVATE VLAN
• GVRP
• VLAN VPN (QINQ)
– PORT-BASED QINQ
– SELECTIVE QINQ
• VOICE VLAN
LISTA DE CONTROL DE ACCESO • TIME-BASED ACL
• MAC ACL
– SOURCE MAC
– DESTINATION MAC
– VLAN ID
– USER PRIORITY
– ETHER TYPE
• IP ACL
-SOURCE IP
– DESTINATION IP
– FRAGMENT
– IP PROTOCOL
– TCP FLAG
– TCP/UDP PORT
– DSCP/IP TOS
– USER PRIORITY
• COMBINED ACL
• PACKET CONTENT ACL
• IPV6 ACL
• POLICY
– MIRRORING
– REDIRECT
– RATE LIMIT
– QOS REMARK
• ACL APPLY TO PORT/VLAN
SEGURIDAD • IP-MAC-PORT BINDING
– 512 ENTRIES
– DHCP SNOOPING
– ARP INSPECTION
– IPV4 SOURCE GUARD: 100 ENTRIES
• IPV6-MAC-PORT BINDING
– 512 ENTRIES
– DHCPV6 SNOOPING
– ND DETECTION
– IPV6 SOURCE GUARD: 100 ENTRIES
• DOS DEFEND
• STATIC/DYNAMIC PORT SECURITY
– UP TO 64 MAC ADDRESSES PER PORT
• BROADCAST/MULTICAST/UNICAST STORM CONTROL
– KBPS/RATIO CONTROL MODE
• 802.1X
– PORT BASE AUTHENTICATION
– MAC BASE AUTHENTICATION
– VLAN ASSIGNMENT
– MAB
– GUEST VLAN
– SUPPORT RADIUS AUTHENTICATION ANDACCOUNTABILITY
• AAA (INCLUDING TACACS+)
• PORT ISOLATION
• SECURE WEB MANAGEMENT THROUGH HTTPS WITH SSLV3/TLS 1.2
• SECURE COMMAND LINE INTERFACE (CLI) MANAGEMENT WITH SSHV1/SSHV2
• IP/PORT/MAC BASED ACCESS CONTROL
IPV6 • IPV6 DUAL IPV4/IPV6
• MULTICAST LISTENER DISCOVERY (MLD) SNOOPING
• IPV6 ACL
• IPV6 INTERFACE
• STATIC IPV6 ROUTING
• IPV6 NEIGHBOR DISCOVERY (ND)
• PATH MAXIMUM TRANSMISSION UNIT (MTU) DISCOVERY
• INTERNET CONTROL MESSAGE PROTOCOL (ICMP) VERSION 6
• TCPV6/UDPV6
• IPV6 APPLICATIONS
– DHCPV6 CLIENT
– PING6
– TRACERT6
– TELNET (V6)
– IPV6 SNMP
– IPV6 SSH
– IPV6 SSL
– HTTP/HTTPS
– IPV6 TFTP
L3 FEATURES • 16 IPV4/IPV6 INTERFACES
• STATIC ROUTING
– 48 STATIC ROUTES
• STATIC ARP
– 128 STATIC ENTRIES
• PROXY ARP
• GRATUITOUS ARP
• DHCP SERVER
• DHCP RELAY
– DHCP INTERFACE RELAY
– DHCP VLAN RELAY
• DHCP L2 RELAY
CARACTERÍSTICAS AVANZADAS • AUTOMATIC DEVICE DISCOVERY
• BATCH CONFIGURATION
• BATCH FIRMWARE UPGRADING
• INTELLIGENT NETWORK MONITORING
• ABNORMAL EVENT WARNINGS
• UNIFIED CONFIGURATION
• REBOOT SCHEDULE
MIBS • MIB II (RFC1213)
• INTERFACE MIB (RFC2233)
• ETHERNET INTERFACE MIB (RFC1643)
• BRIDGE MIB (RFC1493)
• P/Q-BRIDGE MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• RADIUS ACCOUNTING CLIENT MIB (RFC2620)
• RADIUS AUTHENTICATION CLIENT MIB (RFC2618)
• REMOTE PING, TRACEROUTE MIB (RFC2925)
• SUPPORT TP-LINK PRIVATE MIB
ADMINISTRACIÓN
OMADA APP YES. REQUIRING THE USE OF OC300, OC200, OMADA CLOUD-BASED CONTROLLER, OR OMADA SOFTWARE CONTROLLER.
CENTRALIZED MANAGEMENT • OMADA CLOUD-BASED CONTROLLER
• OMADA HARDWARE CONTROLLER (OC300)
• OMADA HARDWARE CONTROLLER (OC200)
• OMADA SOFTWARE CONTROLLER
CLOUD ACCESS YES. REQUIRING THE USE OF OC300, OC200, OMADA CLOUD-BASED CONTROLLER, OR OMADA SOFTWARE CONTROLLER.
ZERO-TOUCH PROVISIONING YES. REQUIRING THE USE OF OMADA CLOUD-BASED CONTROLLER.
MANAGEMENT FEATURES • WEB-BASED GUI
• COMMAND LINE INTERFACE (CLI) THROUGH THE CONSOLE PORT, TELNET
• SNMP V1/V2C/V3
– TRAP/INFORM
– RMON (1,2,3,9 GROUPS)
• SDM TEMPLATE
• DHCP/BOOTP CLIENT
• 802.1AB LLDP/LLDP-MED
• DHCP AUTOINSTALL
• DUAL IMAGE, DUAL CONFIGURATION
• CPU MONITORING
• CABLE DIAGNOSTICS
• EEE
• PASSWORD RECOVERY
• SNTP
• SYSTEM LOG
OTROS
CERTIFICACION CE, FCC, ROHS
CONTENIDOS DEL PAQUETE •TL-SX3206HPP SWITCH
• POWER CORD
• QUICK INSTALLATION GUIDE
• RACKMOUNT KIT
• RUBBER FEET
REQUISITOS DEL SISTEMA MICROSOFT® WINDOWS® 98SE, NT, 2000, XP, VISTA™ OR WINDOWS 7/8/10/11, MAC® OS, NETWARE®, UNIX® OR LINUX.
AMBIENTE • OPERATING TEMPERATURE: 0–50 AND #8451; (32–122 AND #8457;);
• STORAGE TEMPERATURE: -40–70 AND #8451; (-40–158 AND #8457;)
• OPERATING HUMIDITY: 10–90% RH NON-CONDENSING
• STORAGE HUMIDITY: 5–90% RH NON-CONDENSING
